Resource Manager Guide

Overview

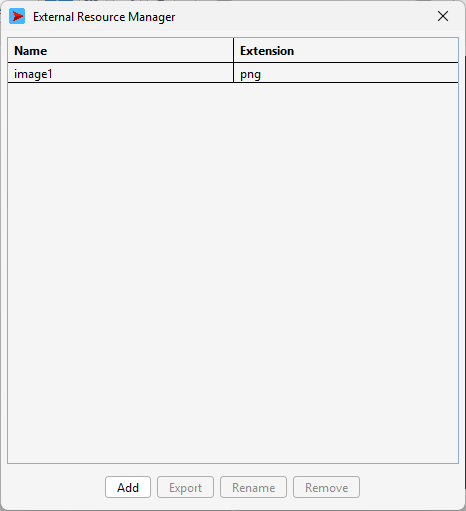

The Resource Manager dialog, shown below, allows you to manipulate the resources that are bundled with a model.

You can store any file type in a model using the Resource Manager. Although each resource’s original file extension is not included in its name, the Resource Manager will remember the extension for other users’ reference.

Usage

Add

This button opens a system file selection dialog where you can choose a file to bundle with the model. After accepting the dialog, you will be prompted to enter a name for the resource (without a file extension). You can choose whatever name you would like, although no two resources can have the same name, regardless of their original file extensions.

Export

Sometimes you might want to get a closer look at a resource bundled with a model, or save it for your personal use. After selecting a resource from the list, the Export button will become enabled, and clicking it will open a system file selection dialog where you can choose a path for the exported file. Exporting a resource does not remove it from the model.

Rename

After selecting a resource from the list, the Rename button will become enabled, and clicking it will open a dialog where you can choose a new name for the resource. The operation will not be completed if you choose a name that already exists in the list.

Remove

After selecting a resource from the list, the Remove button will become enabled, and clicking it will remove the selected resource from the model.

File Types

As mentioned above, any file type can be stored in a model. However, most file types do not have an obvious use case in NetLogo. Listed below are the most common use cases for bundled resources.

Plain Text

Bundling plain text files with a model is the simplest use case, and can be useful for storing large strings of text that would otherwise clutter up the Code tab. Plain text files can be accessed with the resource:get primitive (See Resource Extension).

Images

Bundling images with a model is one of the most common use cases. One way to use a bundled image is to load it into the View, which can be done using either the Import-A Extension or the Bitmap Extension. Another way to use a bundled image is to display it in the Info tab, which can be done using either Markdown or HTML (See Info Tab).
